| Truss name | Series | Connection | Alloy | Main pipe | Angle brace |
|---|---|---|---|---|---|

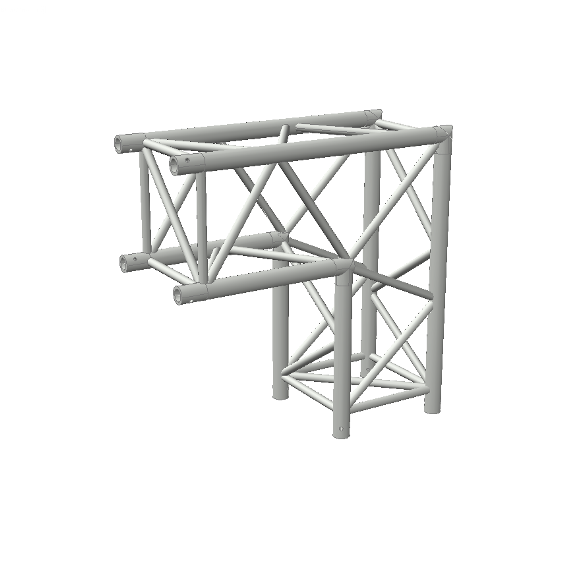

| The angle is 90 degrees | U 400 QB | Bosses В50 | EN AW 6082 | 50x3mm | 25x2mm |
The standard U400QB Truss Angles are available in 2- to 6-way connections, and 45- to 120-degree angles to create a variety of designs. . The U400QB truss and the corners are connected using conical elements (bumps, wedges).
The load characteristics given in the table are indicative. A detailed description of the bearing capacity of the truss under various types of loads is given in the product passport. For more detailed information, contact the specialists of the “ALVISS” company. The operation of the structure must be carried out in compliance with all the requirements and recommendations of the manufacturer.
