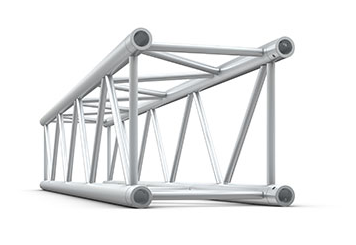

| Truss name | Series | Connection | Alloy | Main pipe | Angle brace |
|---|---|---|---|---|---|
| Trilight | UL 300 ТB | Bosses B-50 | ENAW 6063T6 | 50x2mm | 16x2mm |
This series is not only for hanging light and sound equipment.
These trusses can be used to mount light stages, pavilions, tents, advertising structures, screens, etc.
| length (m) | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|
| concentrated load (kg) | 900 | 620 | 447 | 335 | 281 | 210 | 190 |
| deflection (mm) | 12 | 27 | 50 | 80 | 115 | 152 | 216 |
| distributed load (kg/mp) | 410 | 175 | 104 | 65 | 38 | 20 | 15 |
| deflection (mm) | 16 | 38 | 64 | 98 | 135 | 173 | 255 |
The load characteristics given in the table are indicative. A detailed description of the bearing capacity of the truss under various types of loads is given in the product passport. For more detailed information, contact the specialists of the “ALVISS” company. The operation of the structure must be carried out in compliance with all the requirements and recommendations of the manufacturer.
