U 250 QB



Category:
Truss name Series Connection Alloy Main pipe Angle brace
Quadrolight U 250 QB  Bobyshichne B-50 ENAW 6063T6 50x2mm 16x2mm

The production of the company “Alviss” offers a wide range of products, which includes both decorative and professional equipment. Among the universal trusses, it is worth highlighting the 250 series, which has high durability despite its relatively small overall size. It is presented in three types of designs: quadrolat, trilight and twolight. Due to the ease of assembly and mobility of this series, it is widely used for sound and light suspension in restaurants and clubs, as well as for the installation of high-strength advertising stands at exhibitions and galleries. The main advantages of structures from this series of trusses are their lightness and durability.

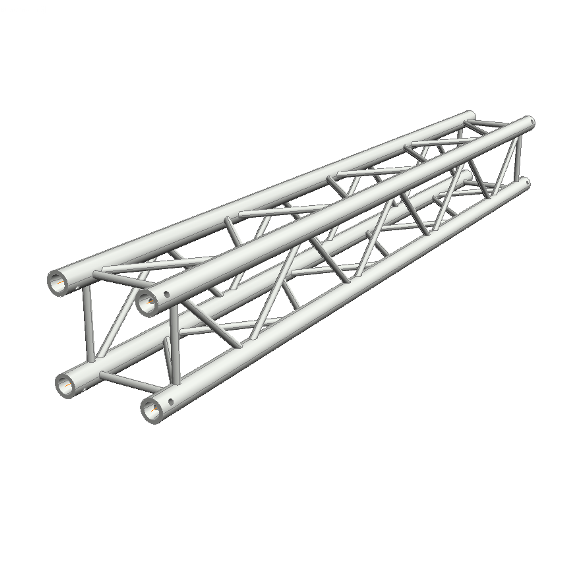

u 250 qb U 250 QB

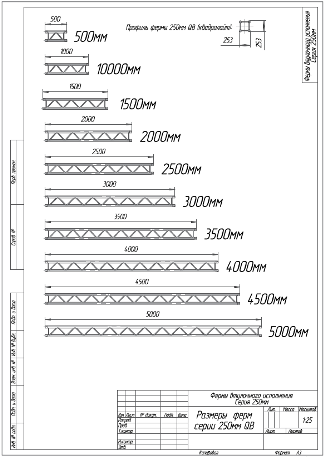

dovzhina U 250 QB

length (m) 2 3 4 5 6 7 8
concentrated load (kg) 810 754 667 590 518 484 404
deflection (mm) 12 18 31 49 71 93 129
distributed load (kg/mp) 585 479 364 215 111 99 87
deflection (mm) 10 17 26 36 51 67 85
